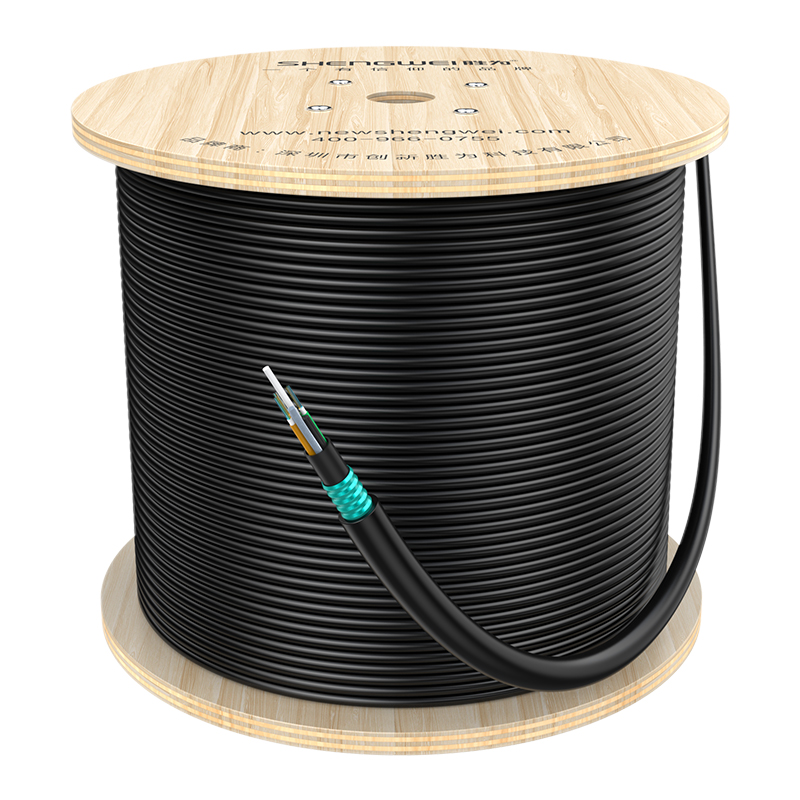

Product Name: gyta/S layer twisted outdoor armored optical cable
Core: 4-144 core
Reinforcing wire: 1.4 mm
Sheath quality: HDPE black sheath
Core size: 4-288b1.3
Attenuation: 1310 nm=0.36 dB/km 1550 nm=0.22 dB/km
Allowable stretching force: long-term=600N, short-term=1500N
Allowable flattening force: long-term=300N, short-term=1000N
Bending radius static/dynamic: static=10 times the outer diameter of optical cable dynamic=20 times the outer diameter of optical cable
Cable weight: 88 kg/km
Service life: 25 years
Size outer diameter: 9.0 mm x 0.2 mm
Storage/service temperature: 40+70
